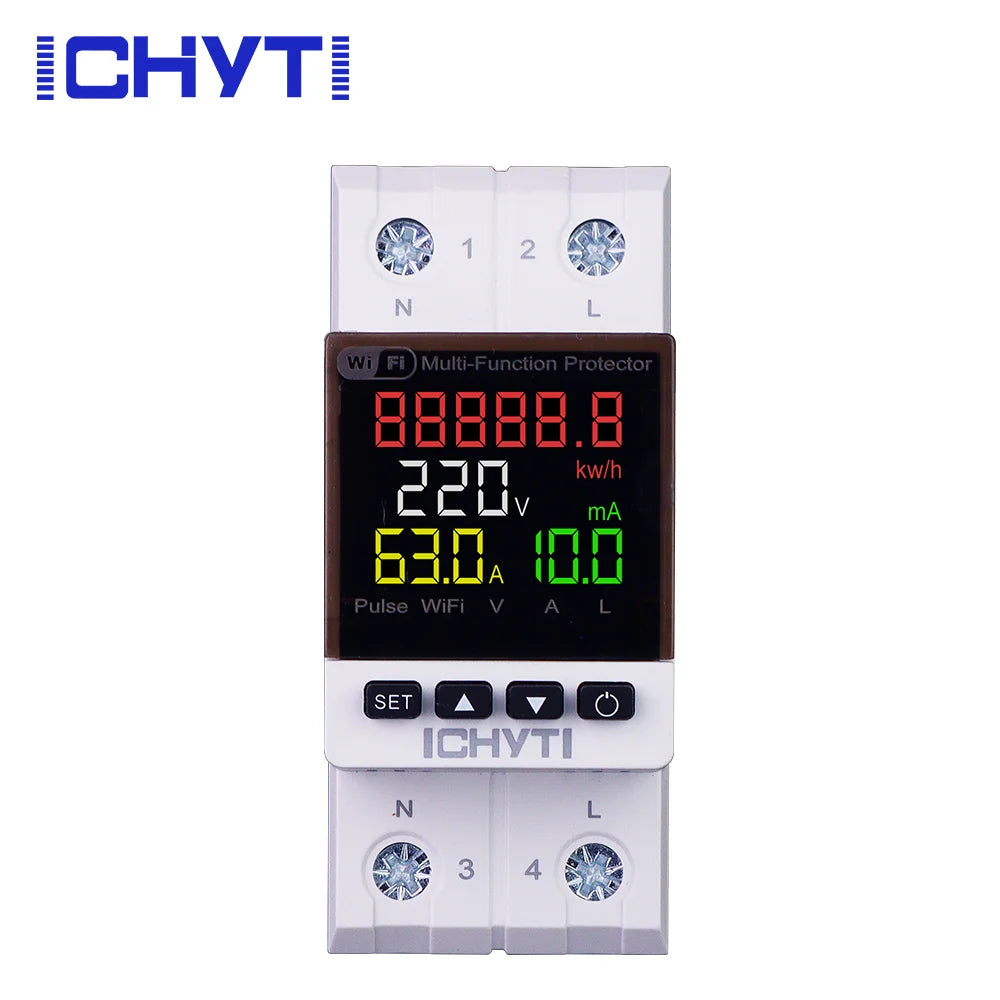

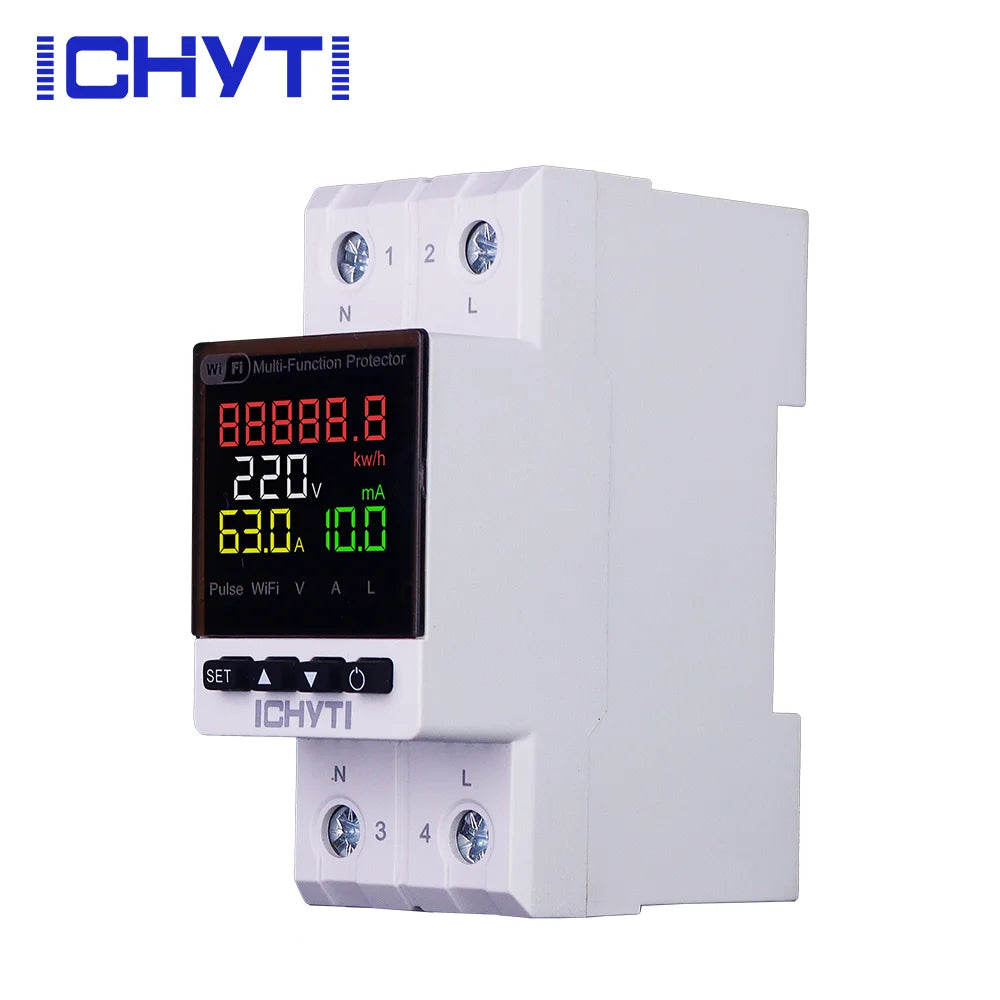

Single Phase WiFi Voltage Protector CHVP-63 63A 220V DIN Rail
Single Phase WiFi Voltage Protector CHVP-63 63A 220V DIN Rail
Protect your electrical equipment with the CHVP-63 Single Phase WiFi Voltage Protector. Engineered for single-phase 220VAC systems, this multifunctional relay voltage stabilizer delivers comprehensive circuit defense featuring adjustable over-voltage, under-voltage, over-current, and electric leakage protection. Integrated metering functions allow real-time monitoring of voltage, current, and total energy consumption on a clear digital display.
Featuring smart auto-recovery with a customizable delay reconnect time, this DIN rail-mounted device ensures continuous operation without manual intervention under transient faults. Built-in non-volatile memory safely retains threshold settings and power usage data during unexpected power cuts.
Key Features
| Model Number | CHVP-63 |
| Product Type | Relay Voltage Stabilizer |
| Phase | Single Phase |
| Power Supply | 220VAC 50/60Hz |
| Rated Current | 1A~63A (Adjustable) |
| Capacity | 6 kVA |
| Over-Voltage Protection Range | 250V~300V (Adjustable) |
| Under-Voltage Protection Range | 150V~190V (Adjustable) |
| Leakage Protection Range | 10-99mA |
| Power-On Delay Time | 5s~90s (Adjustable) |
| Energy Display Range | 0-99999.9 kWh |
| Electrical Life | 100,000 operations |

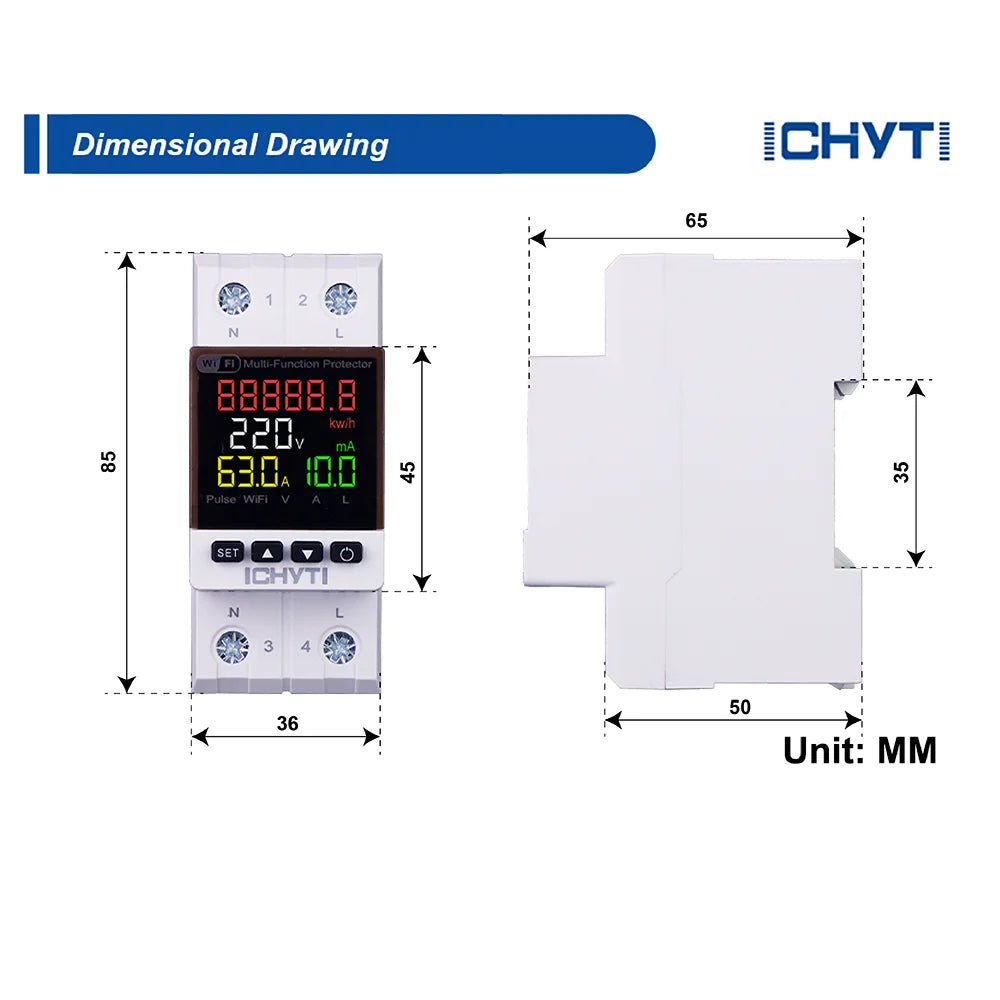

| Mounting Type | 35mm (1.38 in) DIN Rail |
| Display Type | LCD |
Highlights
- Adjustable over-voltage, under-voltage, and over-current protection thresholds
- Integrated leakage protection from 10mA to 99mA

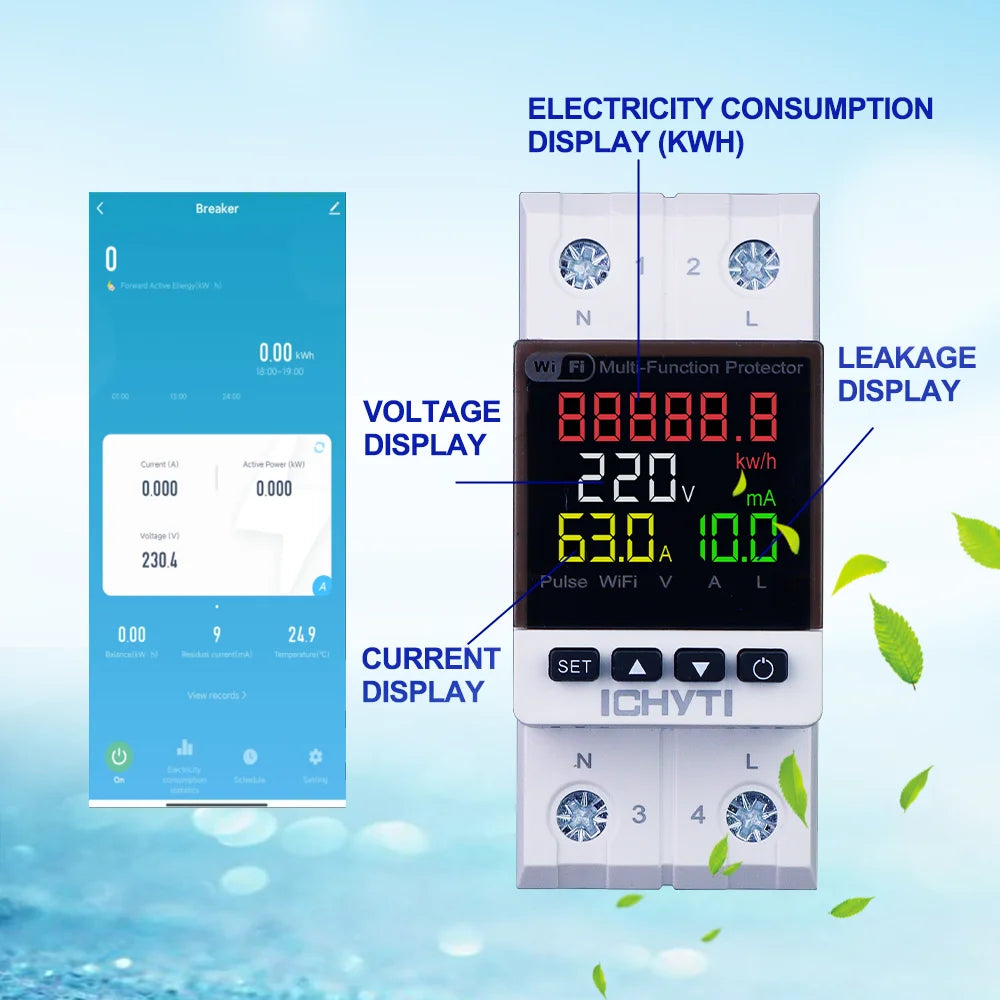

- Real-time voltage, current, energy metering, and LCD monitoring
- Configurable auto-reconnect delay time from 5s to 90s

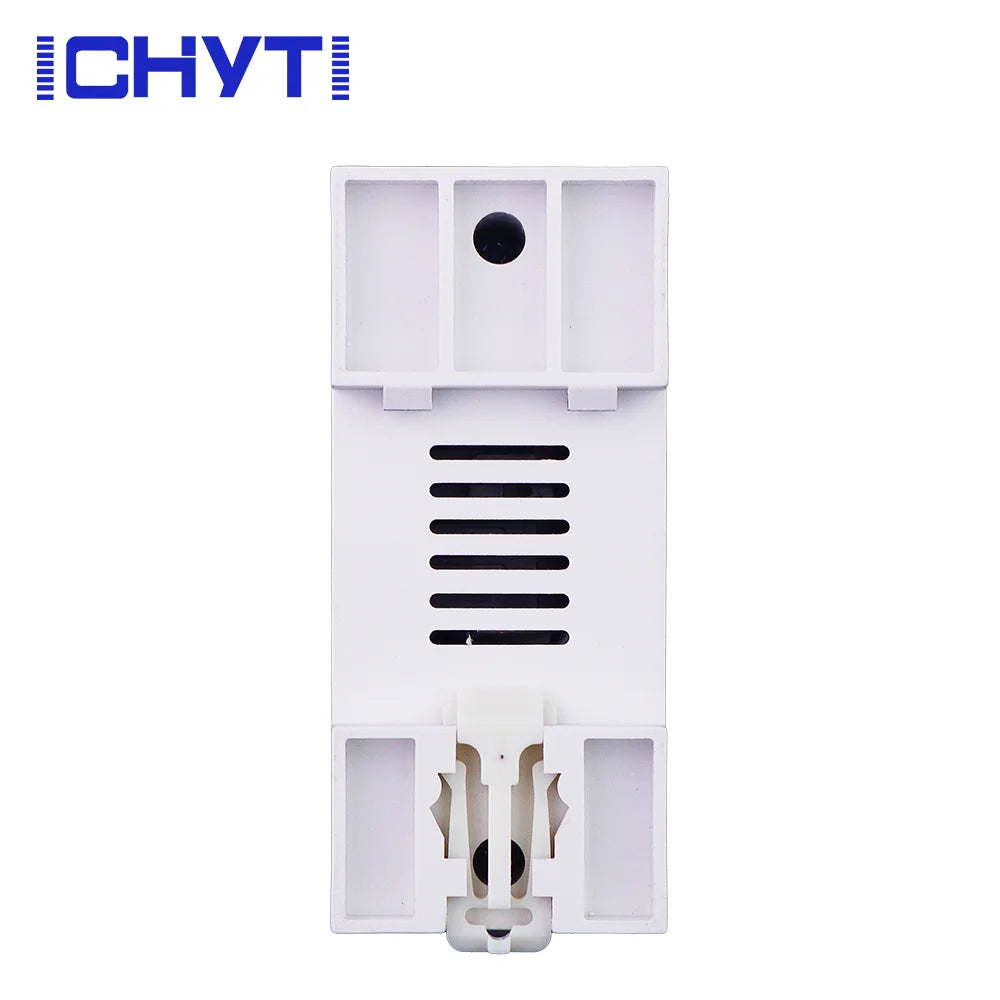

- Mounts directly onto standard 35mm (1.38 in) DIN rails
Videos
Compatibility
Compatible with standard single-phase 220VAC 50/60Hz electrical systems and standard 35mm (1.38 in) DIN rail enclosures.
