Single Phase Adjustable Voltage Protector Relay CHVP 63A 220V DIN Rail
Single Phase Adjustable Voltage Protector Relay CHVP 63A 220V DIN Rail
The CHVP series intelligent voltage protector provides robust defense against power anomalies by integrating over-voltage, under-voltage, and over-current protection into a compact unit. It instantly cuts off the circuit during electrical faults to prevent severe damage to connected home appliances and sensitive equipment.

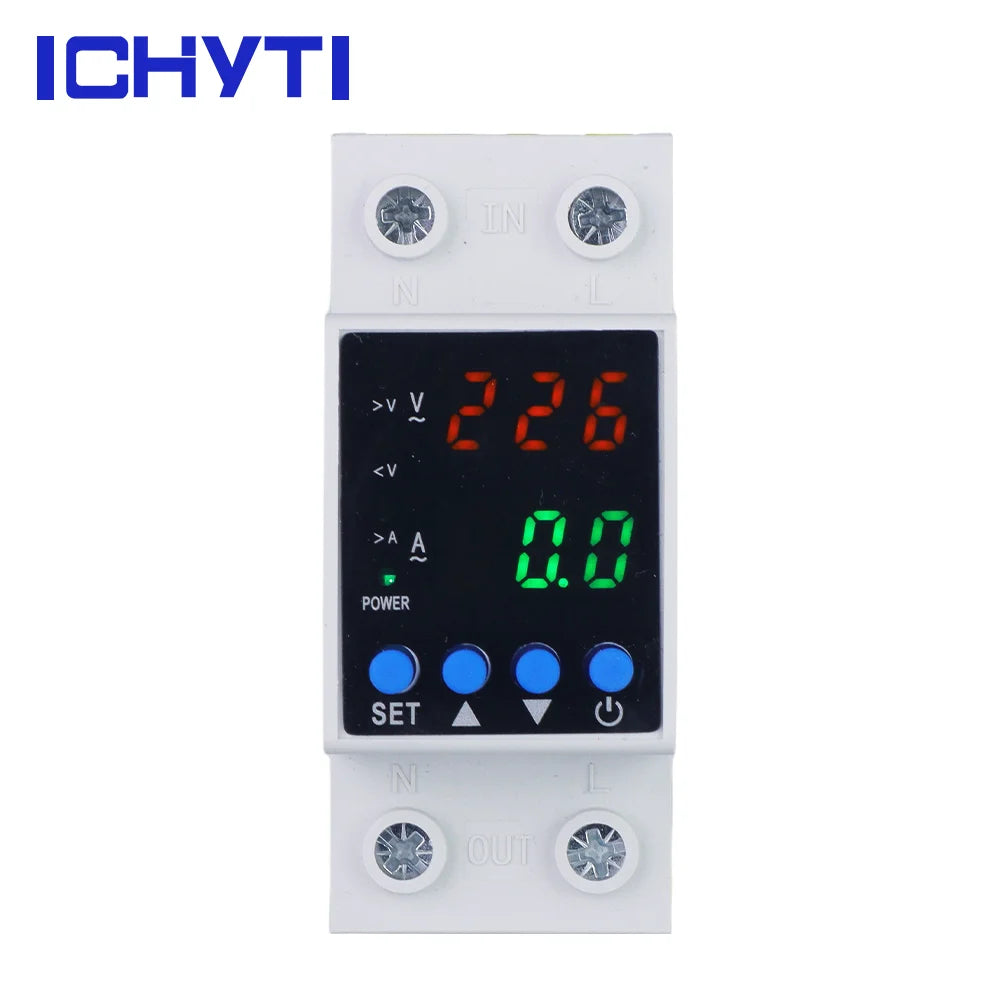

Equipped with a clear digital LCD display for real-time voltage and current monitoring, this relay offers fully adjustable threshold parameters and automatic recovery. The durable unit is designed for standard 35mm DIN rail mounting, delivering reliable circuit safeguarding with an extended electrical service life.
Key Features
| Model | CHVP |
| Phase | Single Phase |
| Rated Voltage | 220/230VAC 50/60Hz |
| Rated Current | 1–63A Adjustable (Default: 63A) |
| Over-Voltage Protection Range | 240V–300V Adjustable (Default: 270V) |
| Under-Voltage Protection Range | 140V–200V Adjustable (Default: 170V) |
| Power-On Delay Time | 1s–300s Adjustable (Default: 30s) |
| Power Consumption | <2W |
| Display Type | Digital LCD |
| Electrical Life | 100,000 Operations |

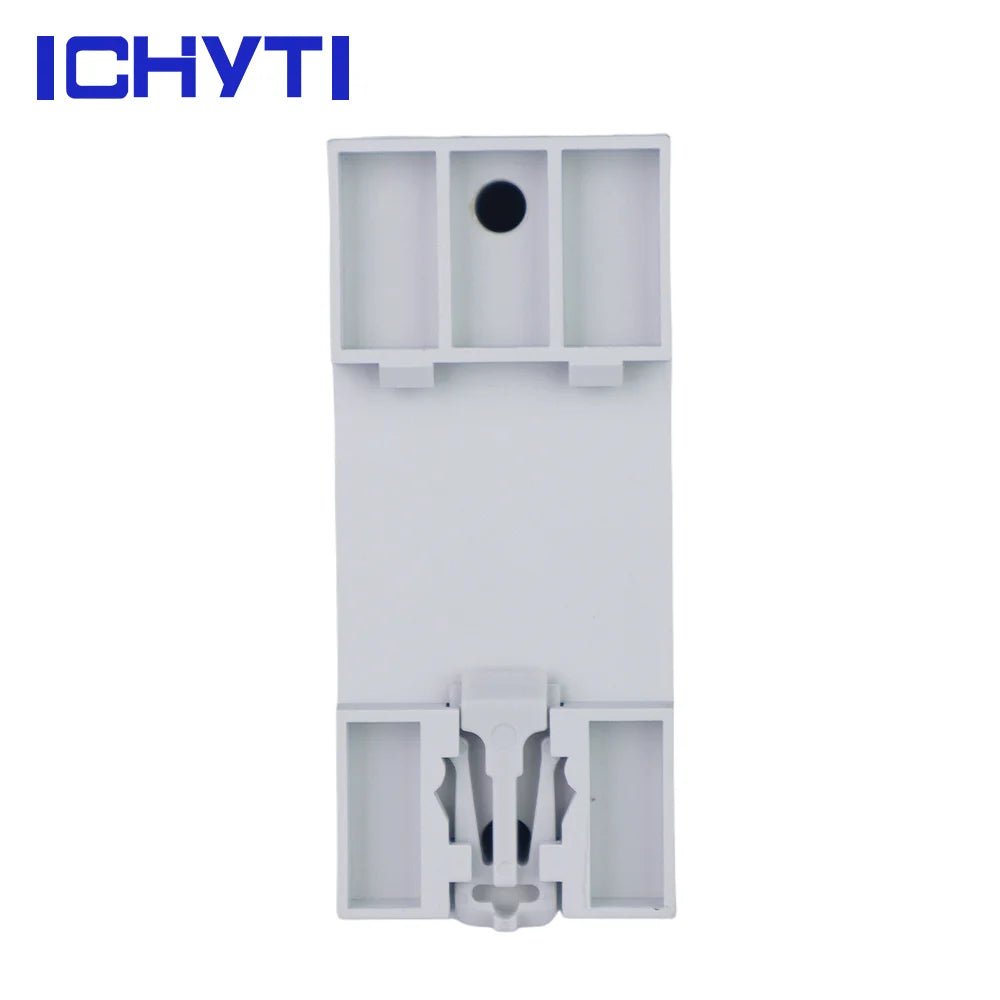

| Mounting Type | 1.38 in (35mm) DIN Rail |
| Material | Copper, PC |
Highlights
- Over-voltage protection
- Under-voltage protection
- Over-current protection
- Automatic recovery
- Voltage display (voltage measurement)
- Current display (current measurement)
How to use
When first connected, the device requires a power-on delay time (adjustable from 1s to 300s; default is 30s). Once the red light turns off, the product is operational.
